| NO. | Item | Parameters | |
| 1 | Max punching force | 1000KN | |
| 2 | Max plate dimension | 775*1500mm | |
| 3 | The plate thickness | 5-25mm | |
| 4 | Max punching diameter | φ25.5mm（16Mn，20mm thickness、Q235,25mm thickness） | |
| 5 | Number of modules | 3 | |
| 6 | The minimum distance from the hole to the edge | 25mm | |
| 7 | Max marking force | 800KN | |
| 8 | Number of characters and size | 10(14*10mm) | |
| 9 | The Precision | Angle steel joint connecting plate with any hole spacing | Vertical ±0.5mm, horizontal ±0.5mm |
| Hole centerline sloped | On the plate thickness ≤0.03t, and ≤2mm | ||
| Junction plate | Any two sets of hole spacing ±1.0mm, steel plate edge distance: ±1.0mm | ||
| 10 | Hydraulic pump motor power | 15KW | |
| 11 | X, Y axis servo motor power | 2*2KW | |
| 12 | Required compressed air pressure * displacement | 0.5MPa*0.1m3/min | |

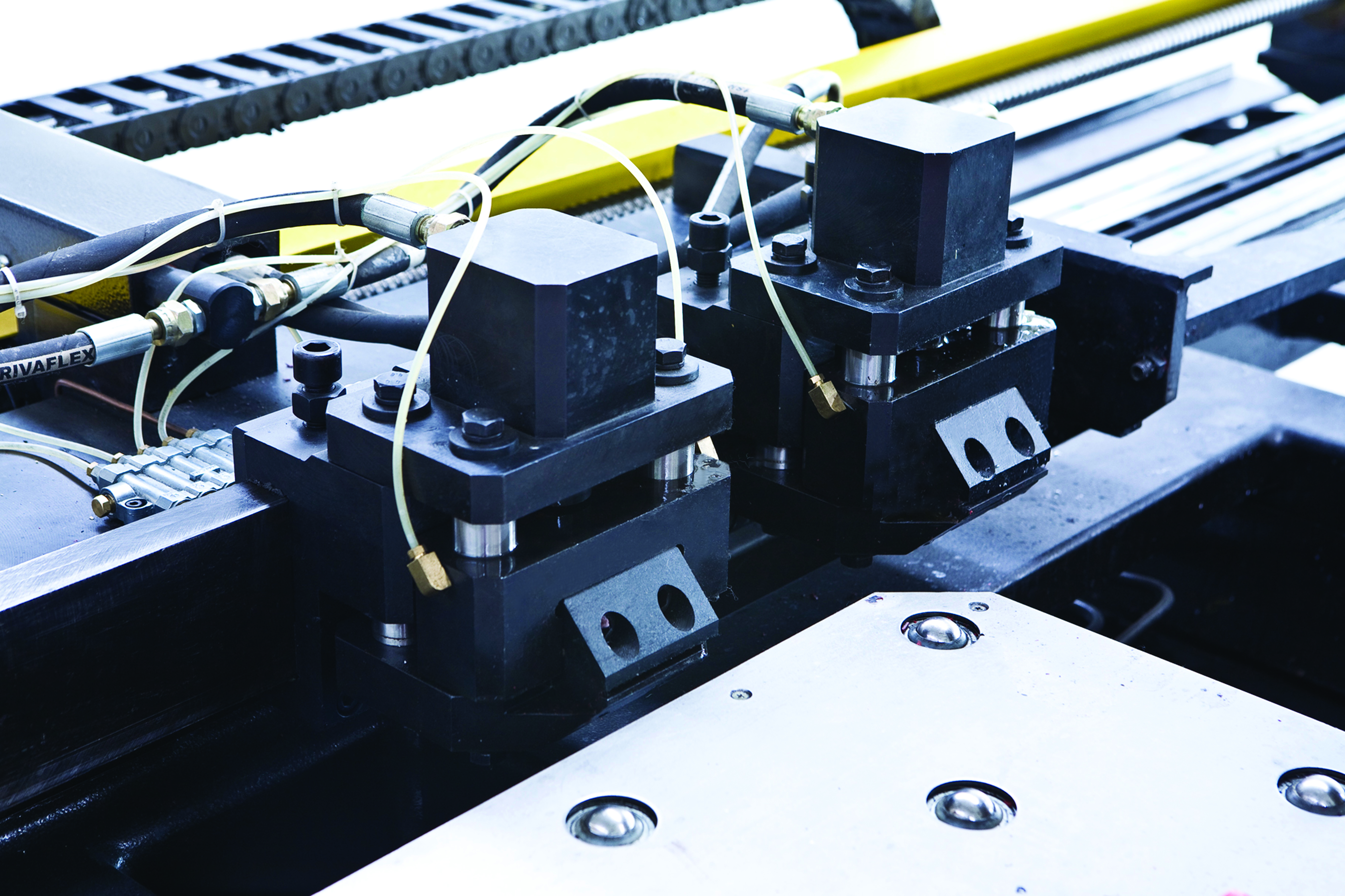

4. Both X and Y axes use precision linear guide rails, with large load, high precision and long service life of the guide rails. And can maintain the high precision of the machine tool for a long time. 5. The combination of centralized lubrication and distributed lubrication is used to lubricate the machine tool, so that the machine tool can be lubricated.Always in good working order. 6. The CNC worktable for moving the plate is directly fixed on the foundation, and the worktable is equipped with a universal conveyor Ball, small resistance, low noise and easy maintenance when the plate moves. 7.The plate is clamped by two powerful hydraulic clamps and moves quickly for positioning. The clamp can be adjusted with the plate. Ups and downs, up and down. The distance between the two clamps can be adjusted arbitrarily according to the length of the plate clamping side. 8. The pumps, valves and other parts of the hydraulic system are all brand-name products, so that the structure of the hydraulic power system is tight.Compact, firm and durable, stable stamping, sufficient power, ensure the dynamic performance of the machine tool, improve the machine toolThe reliability of the bed. 9.The plate processing time is short, the positioning is fast, the operation is simple, the floor space is small, and the production efficiency is high.| NO. | Item | Brand | Place of origin |
| 1 | AC Servo Motor | DETAL | Taiwan(China) |
| 2 | PLC | DETAL | |
| 3 | Solenoid unloading valve | ATOS/YUKEN | Italy/Taiwan(China) |
| 4 | Relief valve | ATOS/YUKEN | |
| 5 | Solenoid reversing valve | JUSTMARK | Taiwan(China) |
| 6 | Junction Plate | SMC/CKD | Japan |
| 7 | Air valve | SMC/CKD | |
| 8 | Air cylinder | SMC/CKD | |
| 9 | Doublet | AIRTAC | Taiwan(China) |
| 10 | Computer | Lenovo | China |
