| NO. | Item | Parameters |
| 1 | Processing range of angle steel | 40*40*3-140*140*12（Q420） |
| 2 | Maximum punching diameter | φ25.5mm（12mm thick, Q420） Nominal punching force 950KN |
| 3 | Nominal marking force | 1030KN |
| 4 | Number of punches per side | 3 |
| 5 | Number of punch rows on each side | arbitrarily |
| 6 | Number of print header groups | 4 groups |
| 7 | Number of prefix in each group | 18 |
| 8 | Prefix size | 14*10mm |
| 9 | Maximum length of blank | 12m |
| 10 | Cut off mode | Single blade cutting |
| 11 | Cut off nominal force | 1800KN |
| 12 | Number of NC axes | 3 |
| 13 | Feeding speed of angle steel | 40m/min |
| 14 | Punching rate | 1000 holes / h |
| No. | Name | Brand | Manufacture |
| 1 | AC Servo Motor | Panasonic | Japan |
| 2 | PLC | Mitsubishi | |
| 3 | Electromagnetic unloading valve | ATOS/YUKEN | Italy/Taiwan(China) |
| 4 | Relief valve | ATOS/YUKEN | |
| 5 | Electro-hydraulic directional valve | JUSTMARK | Taiwan (China) |
| 6 | Double vane pump | ALBERT | America |
| 7 | Manifold | SMC/CKD | Japan |
3、The CNC feeding trolley is clamped by pneumatic clamp to move and position rapidly. The angle is driven by servo motor, driven by rack and pinion and linear guide, with high positioning accuracy

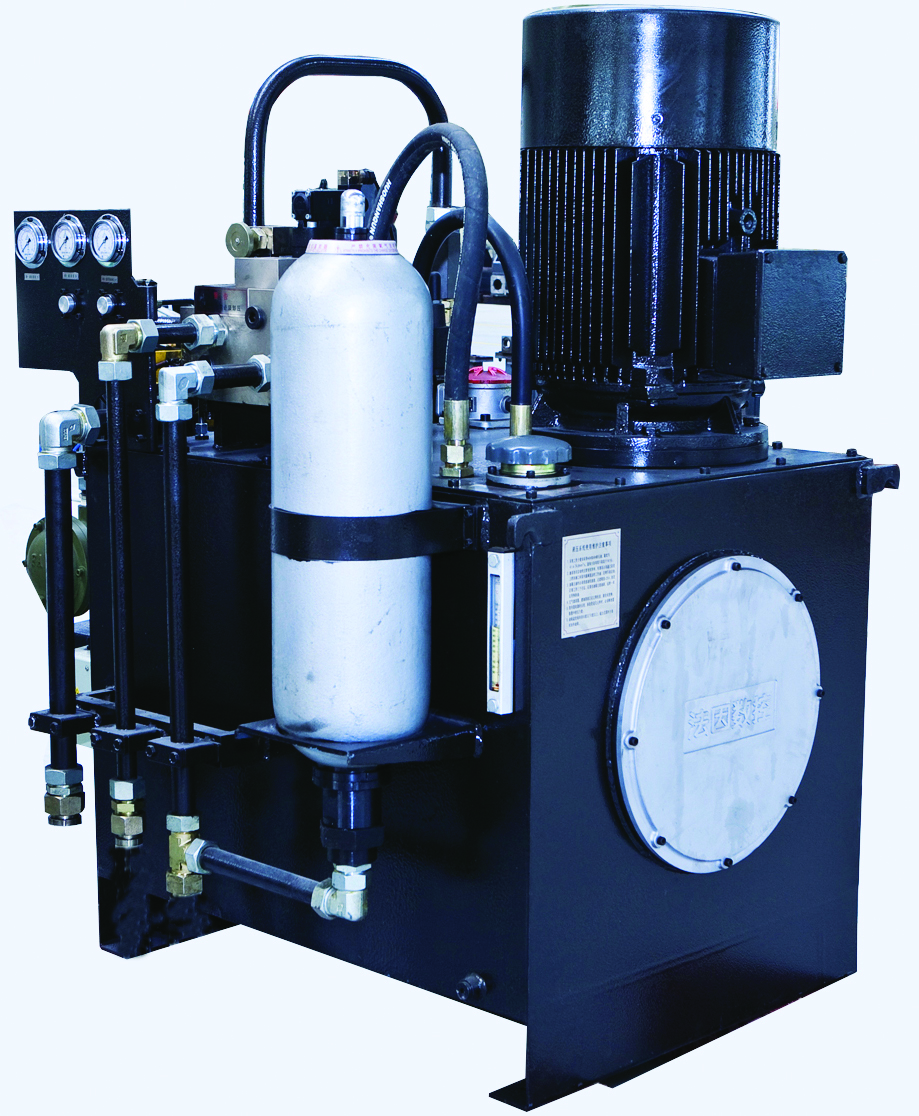

4、This machine has a CNC axis: the movement and positioning of the feeding This machine has a CNC axis: the movement and positioning of the feeding gripper carriage. 5、The hydraulic pipeline adopts the ferrule structure, which effectively reduces the oil leakage and improves the stability of the machine. 6、It is easy to program by computer. It can display the material figure and the coordinate size of the hole position, so it is easy to check. It is very convenient to store and call the program, to display the graph, to diagnose the fault and to communicate with the computer.
