| NO. | Item | parameter |
| 1 | Angle steel range | 35*35*3-56*56*6（Q235） |
| 2 | Nominal typing force | 1030 KN |
| 3 | Nominal punching force | 150 KN |
| 4 | Nominal shear force | 300 KN |
| 5 | Maximum punch diameter | φ22 mm |
| 6 | Maximum blank length | 8m |
| 7 | Number of print header groups | 4 groups |
| 8 | Number of prefixes per group | 18 |
| 9 | Prefix size | 14*10*19 mm |
| 10 | Cut off mode | Single blade cutting |
| 11 | Number of CNC axes | 1 |
| 12 | Cooling mode | water-cooling |
| 13 | Total power of equipment | 13 kw |
| 14 | Machine dimensions | 20*4*2.2m |
| 15 | Net weight | About 10 tons |

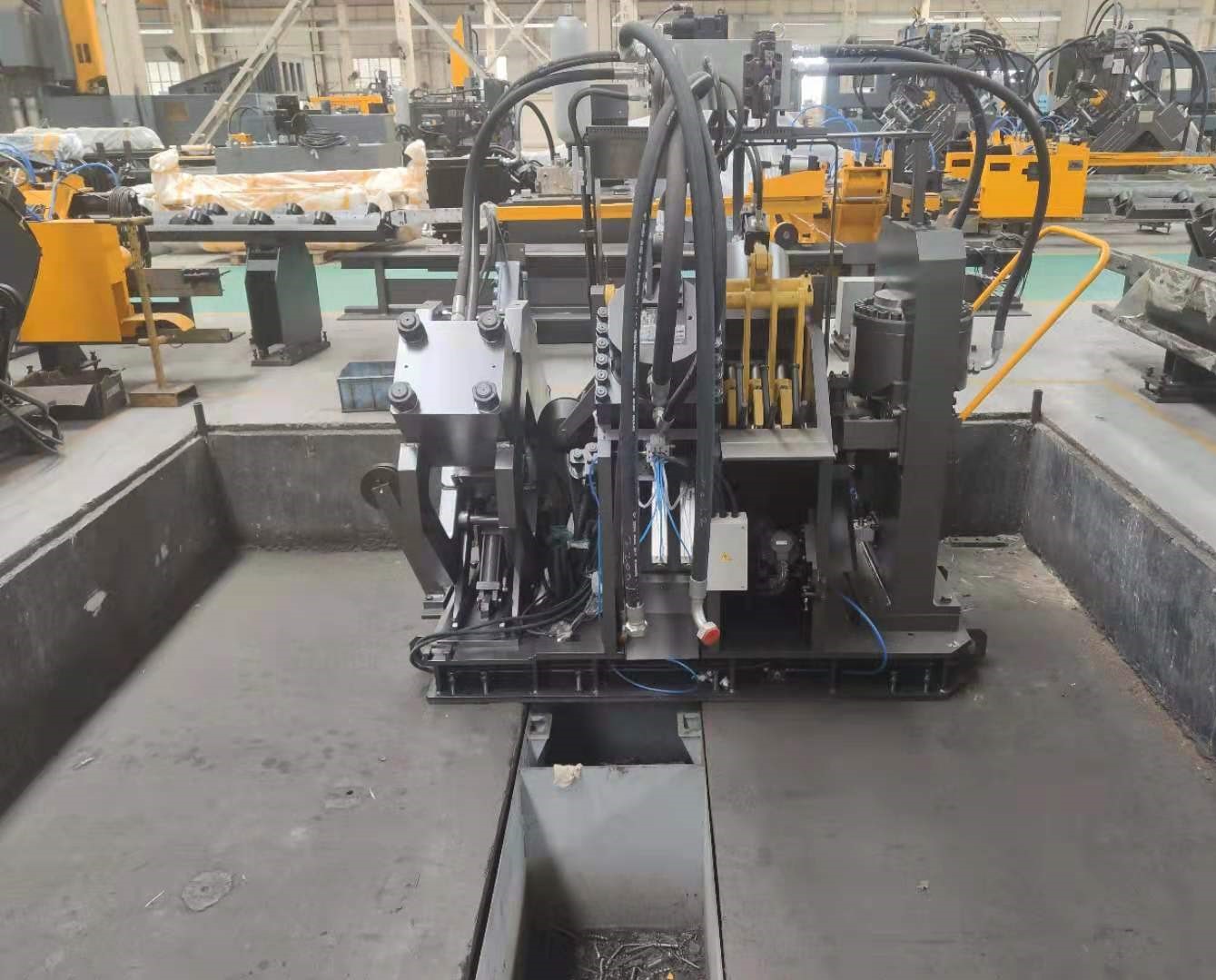

- Punching unit adopts closed fuselage, which is very rigid.
- The single blade cutting mechanism ensures that the cutting section is neat and the shearing clearance is easy to adjust.
- The numerical control feeding trolley is clamped by pneumatic clamp to move and position rapidly. The workpiece is driven by servo motor, driven by rack and pinion and linear guide, with high positioning accuracy。The maximum speed is 80 m / min. The collision protection device ensures the safety of equipment and people in case of collision.
- This machine has a CNC axis: the movement and positioning of the feeding car
- The hydraulic pipeline adopts the ferrule structure, which effectively reduces the oil leakage and improves the stability of the equipment.
- vi. It is easy to program by computer. It can display the workpiece figure and the coordinate size of the hole position, so it is easy to check. It is very convenient to store and call the program, to display the graph, to diagnose the fault and to communicate with the computer.
| NO | Name | Brand | Country |
| 1 | AC servo motor | Delta | Taiwan, China |
| 2 | PLC | Delta | |
| 3 | Electromagnetic unloading valve | ATOS | Italy |
| 4 | Electro hydraulic directional valve | JUSTMARK | Taiwan, China |
| 5 | Double vane pump | Albert | USA |
| 6 | Confluence Plate | AirTAC | Taiwan, China |
| 7 | Air valve | AirTAC | |
| 8 | Computer | Lenovo | China |
